LM358闪烁灯调光器(英文),LANTERN FLASHER - DIMMER by LM358

作者:佚名    文章来源:本站原创    点击数:1593    更新时间:2018-07-29

LM358闪烁灯调光器(英文),LANTERN FLASHER - DIMMER by LM358

关键字:LM358闪烁灯调光器

Basically a high-efficiency dimmer, but can also be used as a flasher. In dimmer mode, the LM358 (dual op-amp) is wired to send pulses at a constant frequency. By adjusting the width of these pulses, brightness of the bulb is controlled. In flasher mode, the same potentiometer is used to control the frequency - from about 1 to 20 flashes per second.

By lowering the brightness power consumption drops considerably, thus extending battery life. Flasher mode is even more efficient. This nice little circuit will work with any DC power supply/battery from 4.5 to 15V. A heat sink on the TIP32 power transistor should not be necessary.

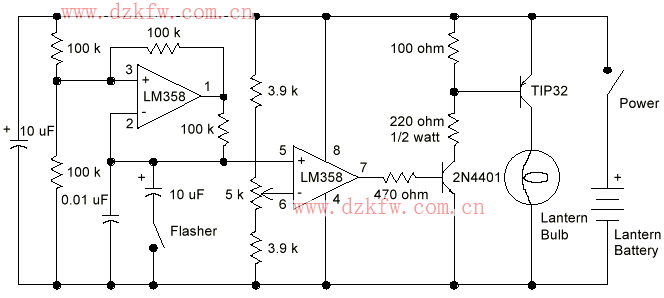

LM358闪烁灯调光器


Tags:LM358,闪烁灯,调光器
